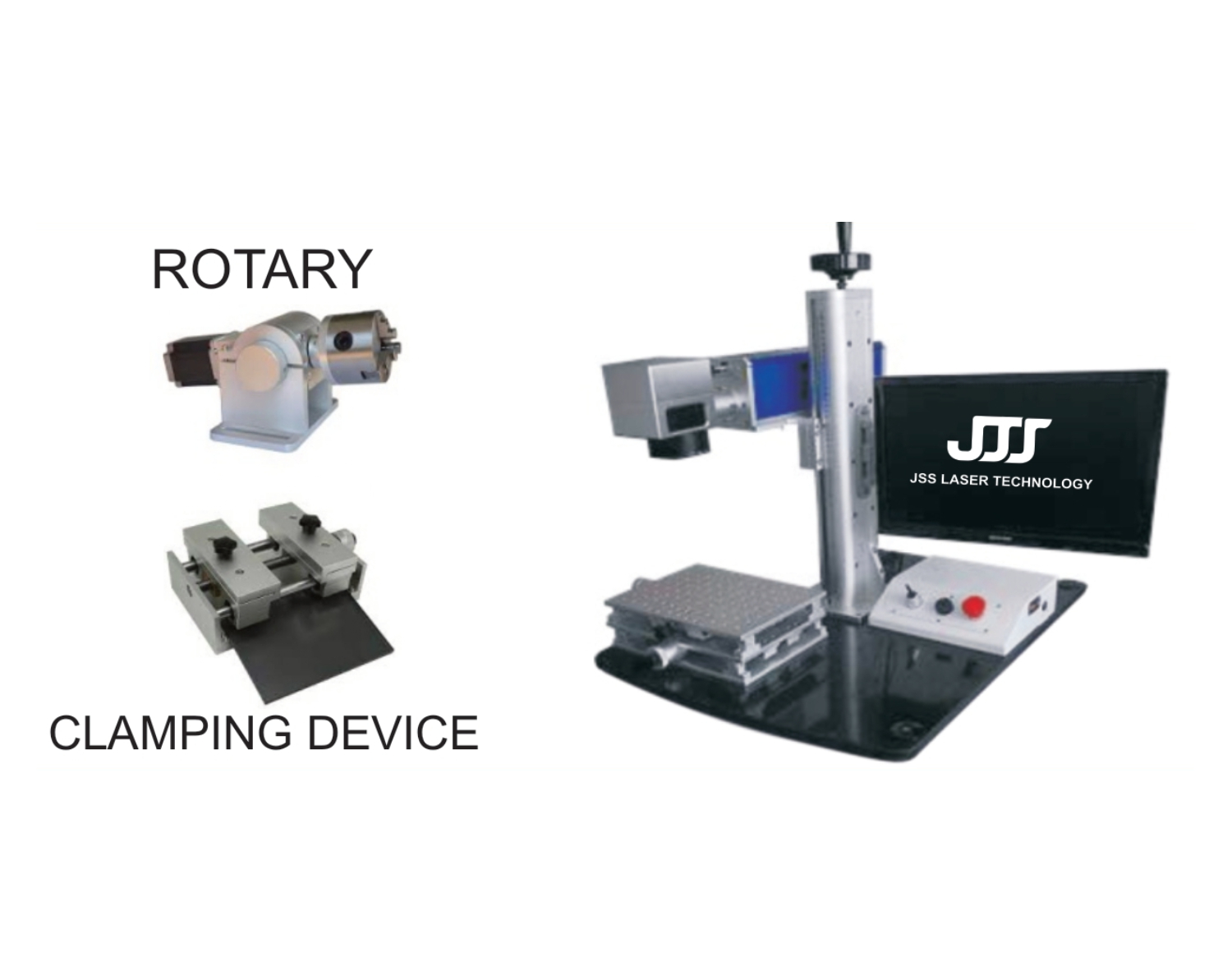

JSS-FL 20/30/50/80/100W
Technical Details
| Model | JSS-FL 20/30/50/80/100W |
| Laser Source | Fiber (Chines/German) |
| Scan Head | High Speed Galvanometer |
| Lens | Wavelength (Singapore) |
| Laser Wavelength | 1064nm |
| Working Area | 100mm / 200mm |
| Laser Source Lifetime | 100000hrs (approx) |
| MTBF | 50000hrs (approx) |
| Software | Ezcad / Marking Mate |
| Beam Quality | M2 <1.6 |
| Laser Repetiiton Rate | 20Hz-100KHz (Frequency) |
| Machine Power | 1000 Watt |

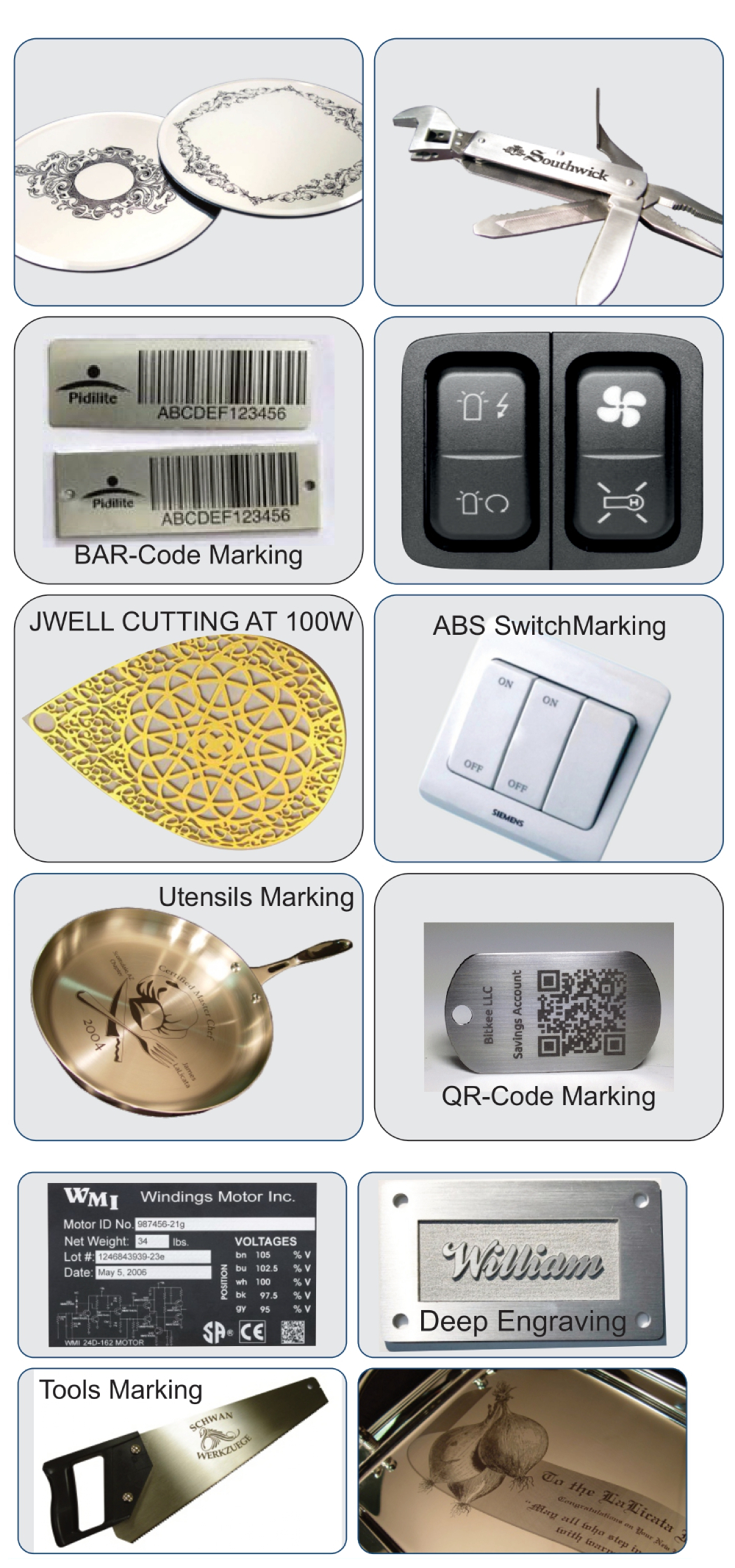

Applications
Making or Engraving on medical implements
Gears bearing screw and other auto parts
Machine tools and other related materials
Name plate and badges etc.
Hall mark on ornaments / jewellery
Switches, circuits breakers etc.
Bar coding, matrix coding etc.
Gears bearing screw and other auto parts
Machine tools and other related materials
Name plate and badges etc.
Hall mark on ornaments / jewellery
Switches, circuits breakers etc.
Bar coding, matrix coding etc.
